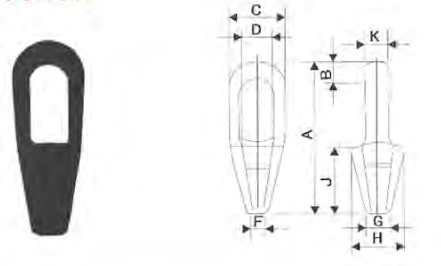

適用鋼絲繩直徑Suitable for wire rope diameter		主要技術參數Main technical parameters
(in)	(MM)	A(MM)	B(MM)	C(MM)	D(MM)	F(MM)	G(MM)	H(MM)	J(MM)	K(MM)
1/4	6	114.30	12.70	38.10	22.35	9.65	17.53	39.62	57.15	12.70
5/16-3/8	8-9	123.95	15.75	42.93	24.64	12.70	20.57	42.93	57.15	17.53
7/16-1/2	11-12	138.18	17.53	50.80	29.64	14.22	23.88	47.75	63.50	22.35
9/16-5/8	14-16	160.27	20.57	66.80	35.81	17.53	28.45	60.45	76.20	25.40
3/4	19	192.02	26.92	76.20	42.16	20.57	31.75	69.85	90.42	31.75
7/8	22	222.25	31.75	92.20	47.75	23.88	38.10	81.55	101.60	38.10
1	25	250.95	35.05	104.90	58.42	28.70	44.45	95.25	112.78	44.45
11/8	28	279.40	38.10	114.30	65.02	31.75	50.80	104.90	127.00	50.80
11/4-13/8	31.5-35	307.85	41.40	134.62	71.37	38.10	57.15	120.65	139.70	57.15
11/2	38	354.08	49.28	135.38	81.03	41.40	69.85	133.35	152.40	63.50
15/8	42	384.30	54.10	146.05	82.55	44.45	76.20	139.70	165.10	69.85
13/4-17/8	45-47.5	438.15	55.63	171.45	95.25	50.80	79.50	162.05	190.50	76.20
2-21/8	50-53	495.30	61.98	193.80	111.25	57.15	95.25	187.45	215.90	82.55
21/4-23/8	57-60	536.70	66.80	215.90	127.00	63.50	101.60	209.55	228.60	92.20
21/2-25/8	63-66	596.90	79.25	241.30	139.70	73.15	114.30	234.95	247.65	101.60
23/4-27/8	70-73	644.65	79.25	273.05	158.75	79.25	123.95	285.83	279.40	123.95
3-31/8	76-80	685.80	82.55	292.10	171.45	85.85	133.25	292.10	304.80	133.35
31/4-33/8	82/85	742.95	101.60	311.15	184.15	91.95	146.05	311.15	330.20	146.05
312-35	89-92	787.40	101.60	330.20	196.85	98.55	165.10	330.20	335.60	158.75
33/4-4	95-100	844.55	107.95	361.95	215.90	107.95	184.15	361.95	381.00	177.80

開式索節

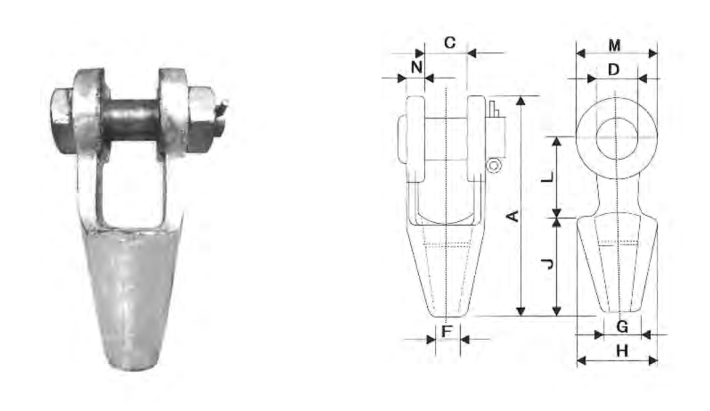

適用鋼絲繩直徑Suitable for wire rope diameter		主要技術參數Main technical parameters
(in)	(MM)	A(MM)	C(MM)	D(MM)	F(MM)	G(MM)	H(MM)	J(MM)	K(MM)	M(MM)	N(MM)
1/4	6	115.82	23.11	17.53	9.65	11.53	39.62	57.15	39.62	33.27	9.14
5/16-3/8	8-9	122.94	20.57	20.57	12.70	20.57	42.93	57.15	44.45	38.10	11.18
7/16-1/2	11-12	141.22	25.40	25.40	14.22	23.88	47.75	62.50	60.80	47.75	12.70
9/16-5/8	14-16	171.45	21.75	30.23	17.53	28.70	57.15	76.20	63.60	57.15	14.22
3/4	19	201.68	38.10	35.05	20.57	31.75	66.53	88.90	76.20	66.55	15.75
7/8	22	234.95	44.45	41.40	23.88	38.10	82.55	101.60	88.80	79.50	23.32
1	25	268.22	50.80	50.80	28.70	44.45	95.25	114.30	101.60	95.25	22.35
11/8	28	299.97	57.15	57.15	31.75	50.80	104.65	127.00	117.35	104.65	25.40
11/4-13/8	31.5-35	335.03	63.50	63.50	38.10	57.15	20.65	139.70	127.00	120.60	28.70
11/2	38	384.05	76.02	69.85	41.40	69.85	133.65	152.40	152.40	136.65	30.23
15/8	42	412.75	76.20	76.20	44.45	76.20	139.70	165.10	165.10	146.05	33.27
13/4-17/8	45-47.5	463.55	88.90	88.90	50.80	79.50	162.05	190.50	177.80	165.10	39.62
2-21/8	50-53	546.10	101.60	95.25	57.17	95.25	187.45	215.90	228.60	177.80	45.97
21/4-23/8	57-60	596.90	114.30	107.95	63.50	101.60	209.55	228.60	254.00	196.85	54.10
21/2-25/8	63-66	647.70	127.00	120.65	73.15	114.30	234.95	247.65	273.05	215.90	60.45
23/4-27/8	70-73	692.15	133.35	127.00	97.25	123.95	266.70	279.40	279.40	228.60	73.15
3-31/8	76-80	736.60	146.05	133.35	85.85	133.35	282.45	304.80	285.75	241.30	76.20
31/4-33/8	82/85	784.35	158.75	139.70	91.95	146.05	301.75	330.40	298.45	254.00	79.25
312-35	89-92	844.55	171.45	152.40	95.55	165.10	314.45	355.60	317.50	273.05	82.55
33/4-4	95-100	920.75	190.50	177.80	97.95	184.15	345.95	381.00	342.90	317.50	88.90
